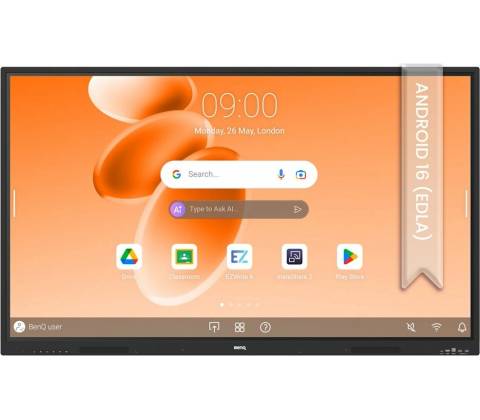

BenQ RE6505A

BenQ LCD RE6505A 65" Touch 8/128GB Android 16

Panel

Screen size 65''

Light source Direct LED

Panel type VA

Orientation Landscape

Operation hours 18 hours / 7 days

Active area 1428.5 × 803.5 mm

• Aspect ratio 16:9
• Contrast ratio (typical) 5500:1
• Dynamic contrast ratio 50,000:1

Resolution UHD 3840 × 2160 pixels

Response time 8 ms

Pixel pitch 0.37 × 0.37 mm

Frame rate 60 Hz

Viewing angle 178°

Panel Surface AG, Haze 25%

Color gamut 72% NTSC

Color depth 10-bit

Light life (typical) 50,000 hrs

Brightness without glass (typical) 450 nits

Glass

Thickness 3.2 mm

Germ-resistant technology N/A

Anti-glare coating Yes

Hardness 9H tempered

Glass Surface Haze 3% ~ 8%

Touch screen

Touch technology Precision IR

Touch points "Up to 50 (Android 50 ; Windows 50)"

Touch resolution 32767 × 32767

Touch response time < 5 ms

Accuracy ±2.0 mm (middle 90% touch area)

OS Supported Windows 7/8/10/11 | Mac OS X 11 or above | Chrome OS 101 or above

Touch pen requirement ? 3 mm

OS for Touch Driver Free Windows 7/8/10/11 | Mac OS X 11 or above | Chrome OS 101 or above

Platform System

SoC RK 3576

CPU A72*4+A53*4

GPU G52 MC3

NPU 6 TOPS

OS Android16 (EDLA)

Memory | Storage 8 GB/ 128 GB

Connectivity

VGA (in | out) N/A

HDMI (in | out) 3 × HDMI 2.0 | 1 × HDMI 2.0

DisplayPort (in | out) N/A

Audio (L/R, RCA) (in | out) N/A

Micro SD reader N/A

Slot-in PC (OPS) 1

SPDIF (in | out) 0 | 1 (optical)

Power (AC) (in | out | switch) 1 | No | 1

Ethernet LAN 10 / 100 / 1000 Mbps (Android), 10 / 100 Mbps (OPS) × 1

RS-232 ( in | out) 1 | 0 3.5 mm Line in (1) N/A 3.5 mm Line in (2) Mic-in x 1 3.5 mm Line out Earphone x 1

USB-A 1 × 2.0 + 3 × 3.0

USB-A (spec name) 1 × USB 2.0 + 3 × USB 3.2 Gen 1 × 1 (1 for optional Wifi dongle)

USB-B (for touch) 2 x 2.0

USB-B (spec name) 2 x USB 2.0

USB-C Front : 1 x USB 3.0 data transmission, video, audio, touch, PD65W)

USB-C (spec name) 1 × USB 3.2 Gen 1 × 1 (PD 65 W)

USB-C out N/A

Built-in peripherals

Speaker 2 x 25W

Power

Power AC 100-240V 50/60Hz

Switch 1

Voltage AC 100-240V 50/60Hz

Wake up LAN/HDMI

Standby power consumption
